Q-cam Customer Counters. Get a highly accurate count of people passing through a defined area by using a 3D sensor camera and screen display
Q-cam Customer Counters
Get a highly accurate count of people passing through a defined area by using a 3D sensor camera and screen display

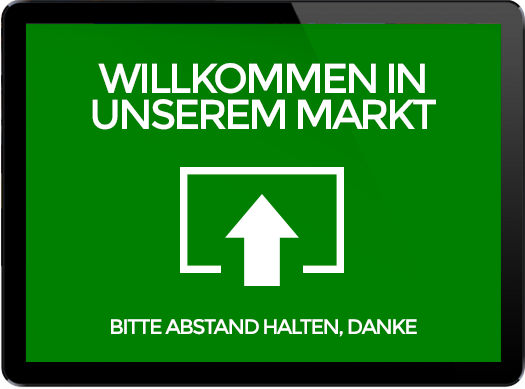

Cucos Q-cam Customer Counters Screen signal to enter the market. Other people may enter.

Screen signal to enter the market. Other people may enter.

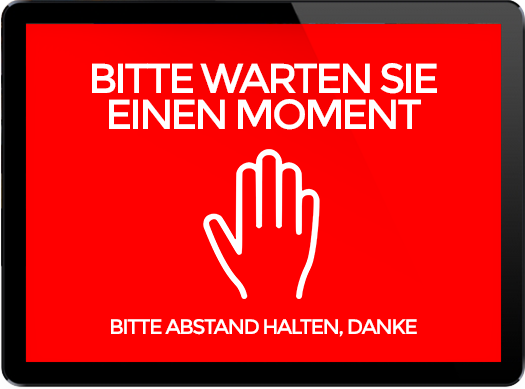

Cucos Q-cam Customer Counters Screen signal to wait. The number of people allowed has been reached.

Screen signal to wait. The number of people allowed has been reached.

Q-cam Counter 3D was specially developed to count people in a defined area and to analyse how long they stay. Based on stereoscopic camera technology (reconstruction of a three-dimensional image), the sensor makes it possible to:

» Recognise people thanks to height profiles
» Create movement profiles without identifying people

This achieves an accuracy of up to 99%. Illumination or special environmental variables (sunlight, object colours, etc.) have no influence on the results, nor do strong frequencies when people are stationary or moving quickly.
Q-cam Counter 3D recording methods
Q-cam Flat / Spot
Setup and installation options

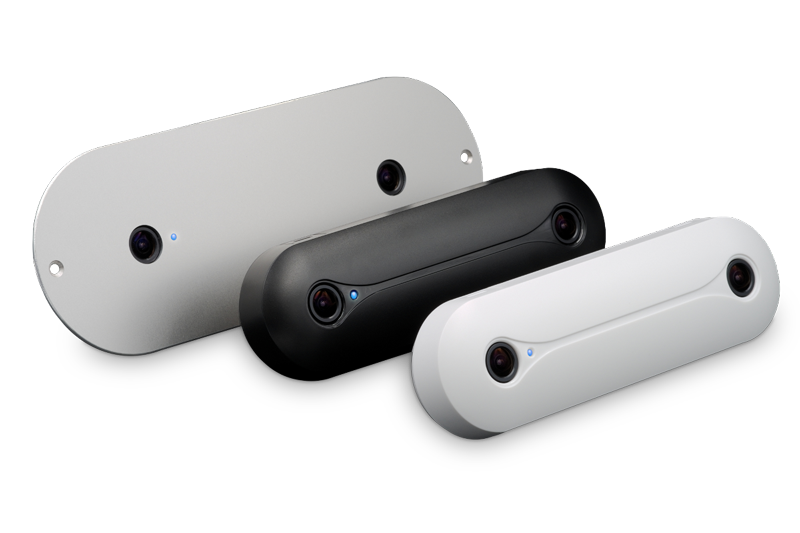

The Q-cam Counter 3D is available in different versions and colours. You can choose between built-in and external versions. Another external version is available for outdoor use.
Stacks Image 10789
ADVANTAGES
Latest stereo camera technology
Counting accuracy up to 99%
Stand-alone operation
Storage capacity > 15 years
Counting, tracking, mapping
Ethernet POE (TCP/IP)
SPOT (built-in)
Dimensions in mm
270 x 100 x 34 (LxWxH)
Built-in dimensions in mm
201 x 59 x 32 (LxWxH)
Weight
500 g
Colours
Brushed aluminium
White
FLAT (external)
Dimensions in mm
215 x 65 x 34 (LxWxH)
Weight
350 g
Colours
White
Black

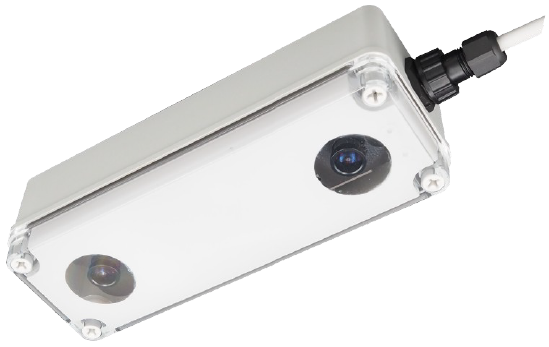

OUTDOOR (external)
Wirkunksvoller Virenschutz von Cucos Retail Systems GmbH mit einer automatischen kamerabasierten Kundenzählung im Eingangsbereich, um zum Schutz vor Tröpfchen- und Schmierinfektionen die Anzahl der Personen in Läden und Geschäften gemäß den gesetzlichen Bestimmungen zu beschränken.
Dimensions in mm
275 x 80 x 65 (LxWxH)
Weight
700 g
Colours
Light grey (RAL7035)
Protection class
IP65
Possible applications
The Q-Cam Counter 3D sensor works according to the person tracking principle (without identification) in order to determine the following results:
TRAFFIC COUNTING

... with high accuracy for processing in statistics and safety applications.
PEOPLE TRACKING

... in defined areas such as queues or to determine the number of customers in the store.
MOTION HEATMAP

... to determine high- and low-frequency areas.
Image analysis
The evaluation of a 3-dimensional image enables:
Height management: minimum, medium and maximum (adult-child distinction)
No influence by light or colour fluctuations (sunshine incidence)
HDR processing: better management of strong contrasts
The camera is also sensitive to infrared, which enables the use of an IR headlight in poor lighting conditions

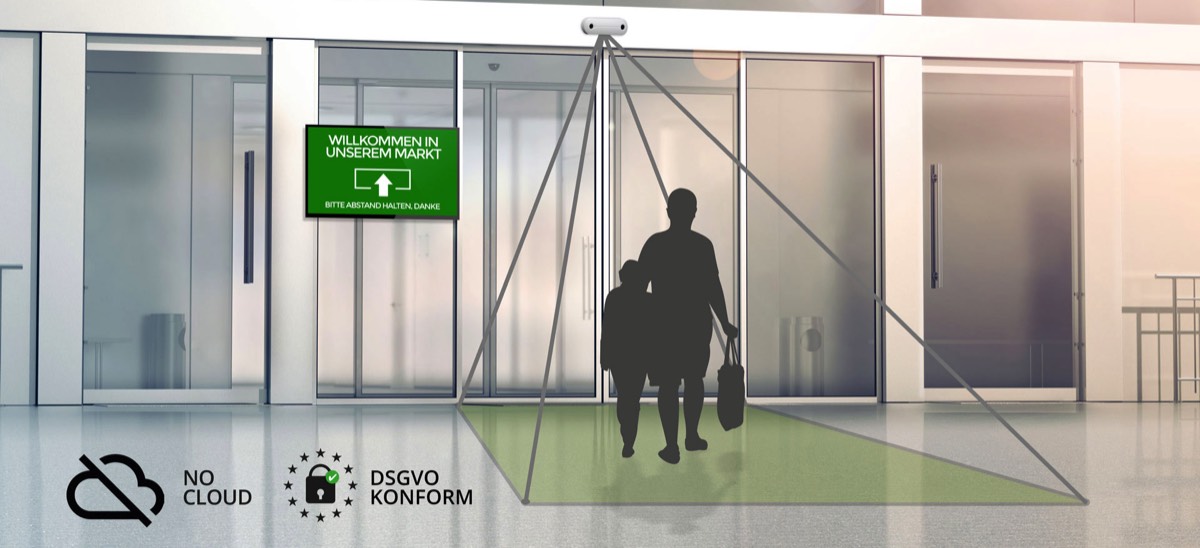

Installation
Attached to or in the ceiling above the entrance area. Several Q-cam 3D counters can also be coupled if there are several entrances and exits. The detection area is then individually defined by software.
Automatischer Virenschutz von Cucos Retail Systems GmbH mit einer automatischen kamerabasierten Kundenzählung im Eingangsbereich, um zum Schutz vor Tröpfchen- und Schmierinfektionen die Anzahl der Personen in Läden und Geschäften gemäß den gesetzlichen Bestimmungen zu beschränken.
Schutz vor Viren von Cucos Retail Systems GmbH mit einer automatischen kamerabasierten Kundenzählung im Eingangsbereich, um zum Schutz vor Tröpfchen- und Schmierinfektionen die Anzahl der Personen in Läden und Geschäften gemäß den gesetzlichen Bestimmungen zu beschränken.
STANDARD - 2,50 to 5,00m
A
B
C
D
2,25m
-
-
-
2,50m
2,10m
1,10m
2,31qm
3,00m
3,20m
1,70m
5,44qm
3,50m
4,30m
2,30m
9,89qm
4,00m
5,50m
2,90m
15,95qm
4,50m
6,60m
3,50m
23,10qm
5,00m
7,70m
4,20m
31,57qm
5,50m
-
-
-
6,00m
-
-
-
6,50m
-
-
-
7,00m
-
-
-
WIDE ANGLE - 2,25 to 4,00m
A
B
C
D
2,25m
2,30m
1,00m
2,31qm
2,50m
3,20m
1,40m
4,48qm
3,00m
5,00m
2,30m
11,50qm
3,50m
6,70m
3,10m
20,77qm
4,00m
8,50m
3,90m
33,15qm
4,50m
-
-
-
5,00m
-
-
-
5,50m
-
-
-
6,00m
-
-
-
6,50m
-
-
-
7,00m
-
-
-
HIGH INSTALLATION - 3,00 to 7,00m
A
B
C
D
2,25m
-
-
-
2,50m
-
-
-
3,00m
1,40m
0,80m
1,12qm
3,50m
1,90m
1,10m
2,09qm
4,00m
2,40m
1,50m
3,60qm
4,50m
2,90m
1,80m
5,22qm
5,00m
3,40m
2,10m
7,14qm
5,50m
3,90m
2,40m
9,36qm
6,00m
4,50m
2,70m
12,15qm
6,50m
5,00m
3,10m
15,50qm
7,00m
6,50m
3,40m
18,70qm

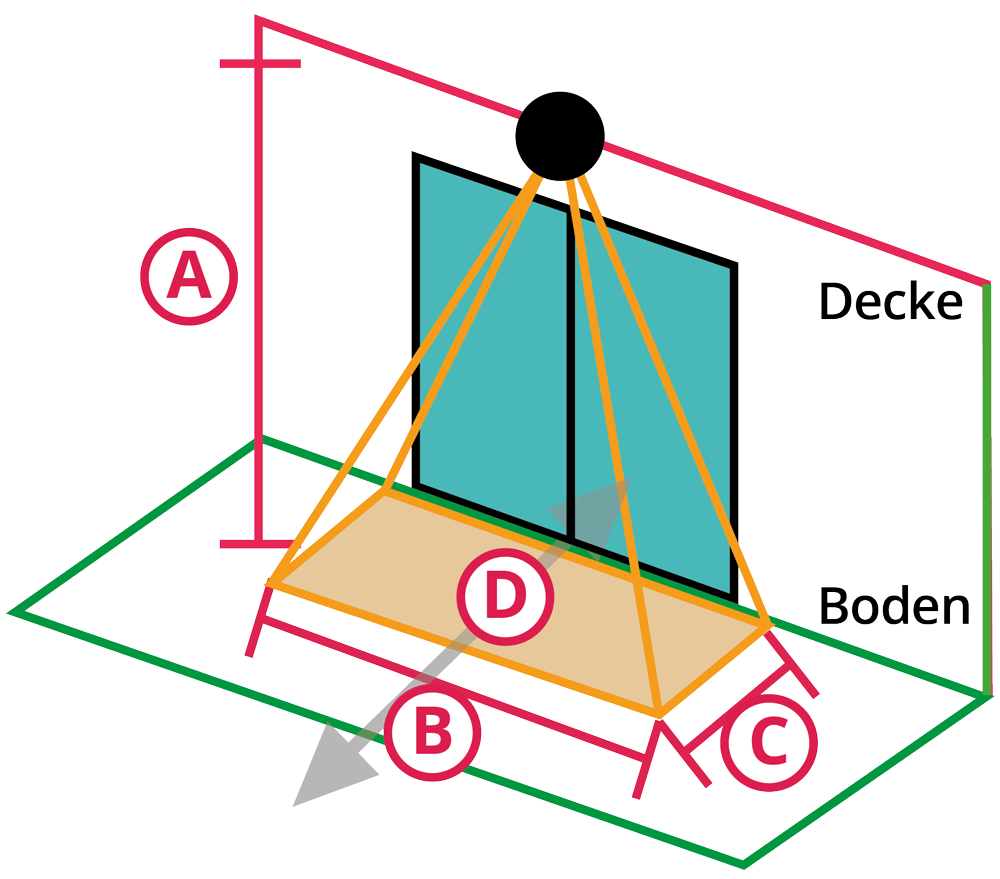

A = installation height
B = width
C = depth
D = coverage in mB2
> B, C and D values refer to a working height of 1.50 m above the floor.
Sample applications
Crowd Monitoring
Crowd Monitoring mit einer kamerabasierten innovativen Lösung und vielen Erweiterungsmöglichkeiten wie Rücklaufsicherung, Diebstahl Alarmierung, Analysefunktionen und Laufwegserkennung.
Crowd Monitoring mit einer Q-Cam mit vielen Erweiterungsmöglichkeiten wie Rücklaufsicherung, Diebstahl Alarmierung, Analysefunktionen und Laufwegserkennung.
Schutz vor Ansteckungen von Cucos Retail Systems GmbH mit einer automatischen kamerabasierten Kundenzählung im Eingangsbereich, um zum Schutz vor Tröpfchen- und Schmierinfektionen die Anzahl der Personen in Läden und Geschäften gemäß den gesetzlichen Bestimmungen zu beschränken.
Stacks Image 13627
Requires an additional radio as a transmitter
Stacks Image 13631
Requires technical support from your entrance system manufacturer
Expansion options
Check valves, anti-theft alarms
Analytical functions
Path detection
Queue management
Stacks Image 13700
Relais Support
Stacks Image 13702
Counts
Stacks Image 13704
Integration
Stacks Image 13706
Tracking
