easyQ / motionQ customer guidance system
The branch and customer information system
Both the detection of queues and targeted information provision for employees and customers can be achieved in a simple and uncomplicated way by means of this flexible system.

After the manual (easyQ) or automatic (motionQ) identification of a queue that is too long, the employee can, in a targeted way, call a new cashier and inform the customer automatically about this change in status.

The customer can optionally be informed by means of individual announcements, till lighting and with the aid of displays that a new till is being opened.

The announcements for the customer in the immediate vicinity of the tills must be regarded separately from the announcements in the store area and in the warehouse and staff areas.

Opening-related announcements should not result in the customer interrupting his or her shopping because the information about till opening can be heard throughout the store area.

Essentially, the system is composed of the following modules:
- easyQ/motionQ central controller
- One control panel per till
- One till light per till
- Amplifier
- Ceiling loudspeaker/loudspeaker
- Ultrasound/infrared sensors (motionQ)

With expanded functionality, adapters are attached which make it possible to connect to external components e.g. the warehouse door or a checkout barrier. The system and the till lights are operated with 24V.

Installation time: just a few hours
Staff briefing: a few minutes
Customer guidance: straight away!
The easyQ/motionQ modules
Stacks Image 10168

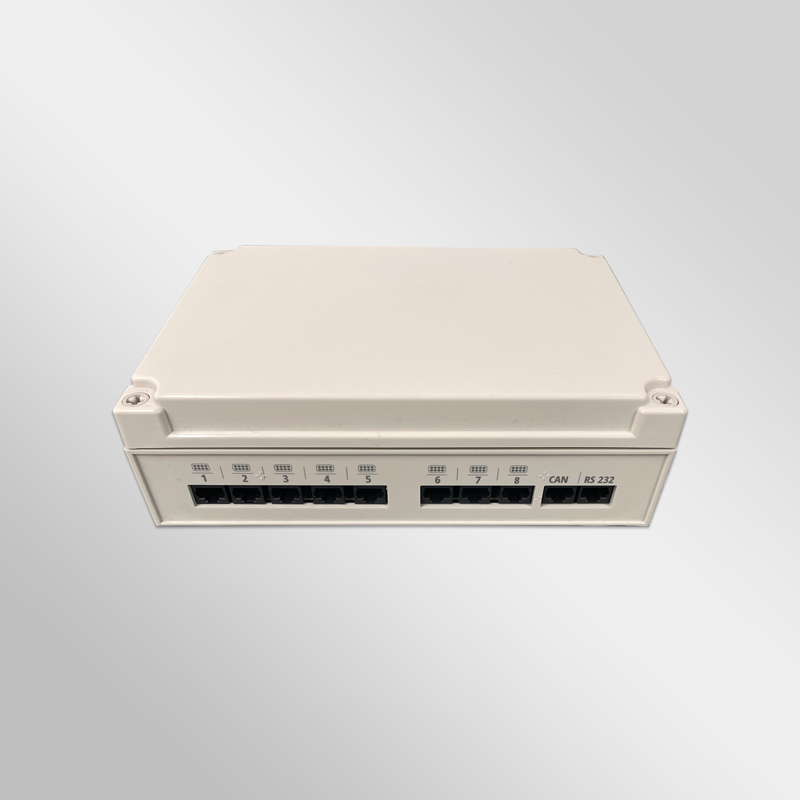

The main controller
The main controller (CCU central control unit) brings together all information, which is directly processed there. The CCU can be expanded to up to 32 tills using the master-slave function.
Stacks Image 10185

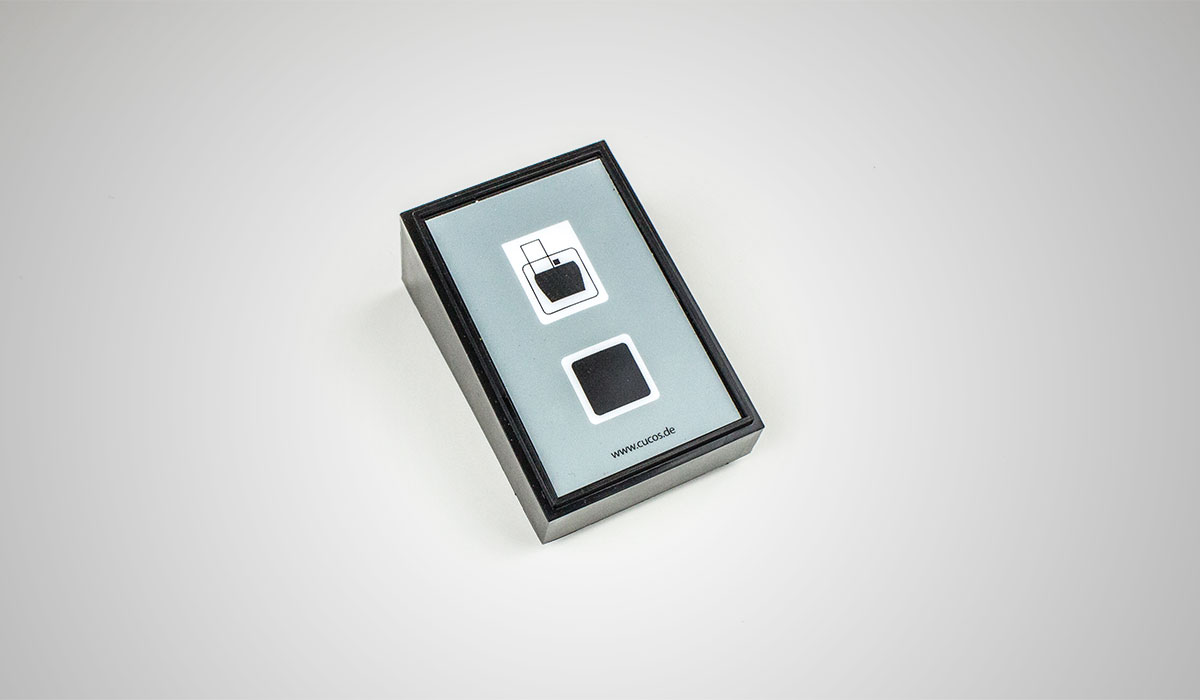

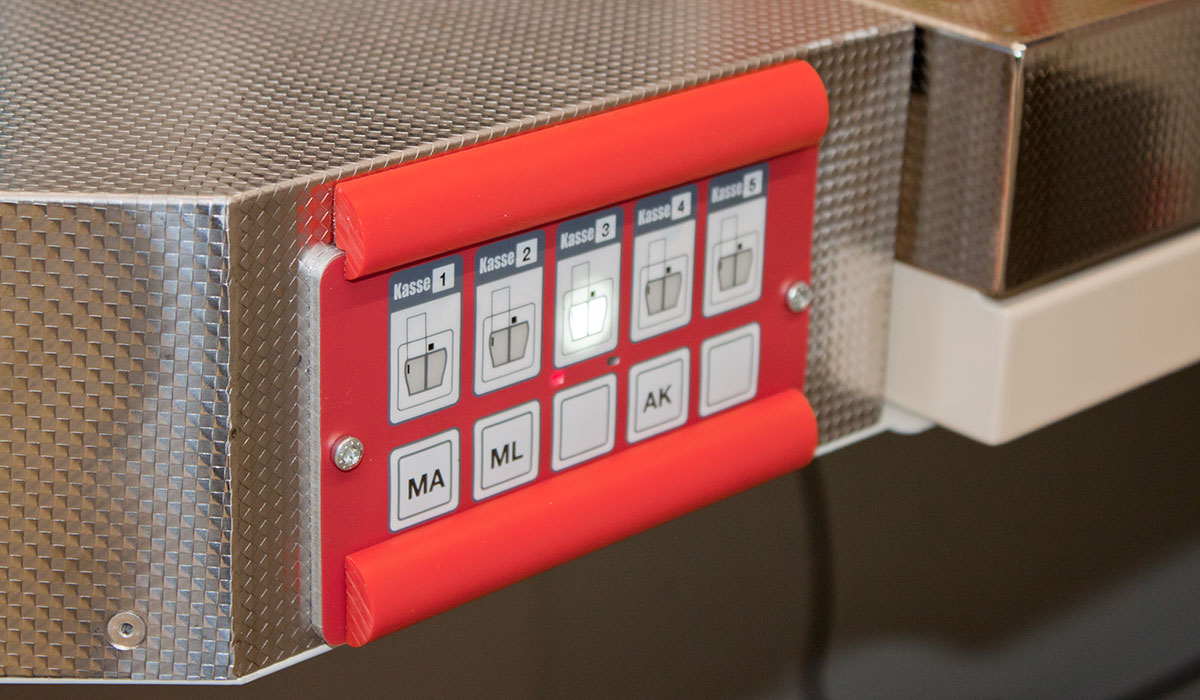

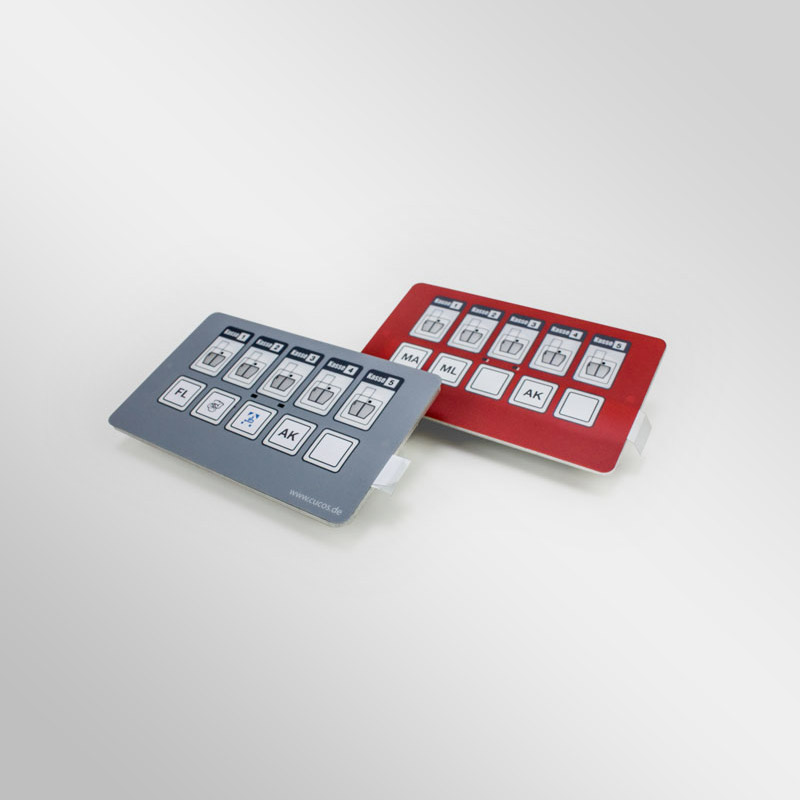

Control panel (example)
Control panels for 5, 8 or 12 tills for approving the till status (log on / log off) / registration and/or calling up of one till by another by the employee.
Stacks Image 10201

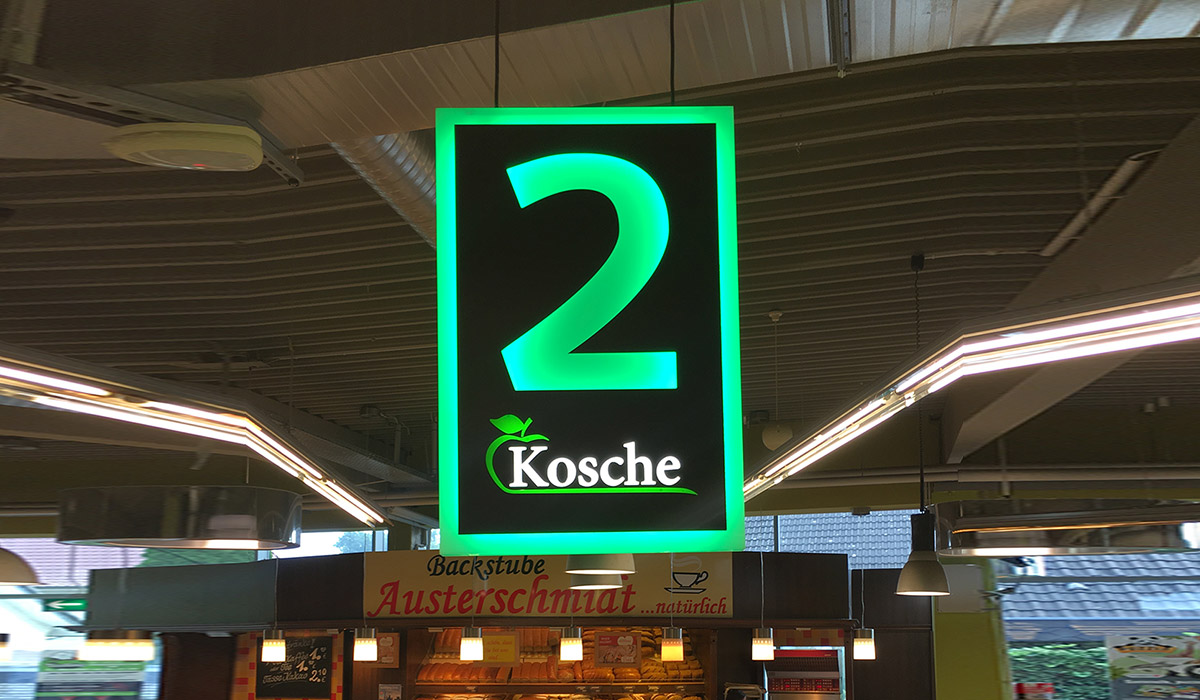

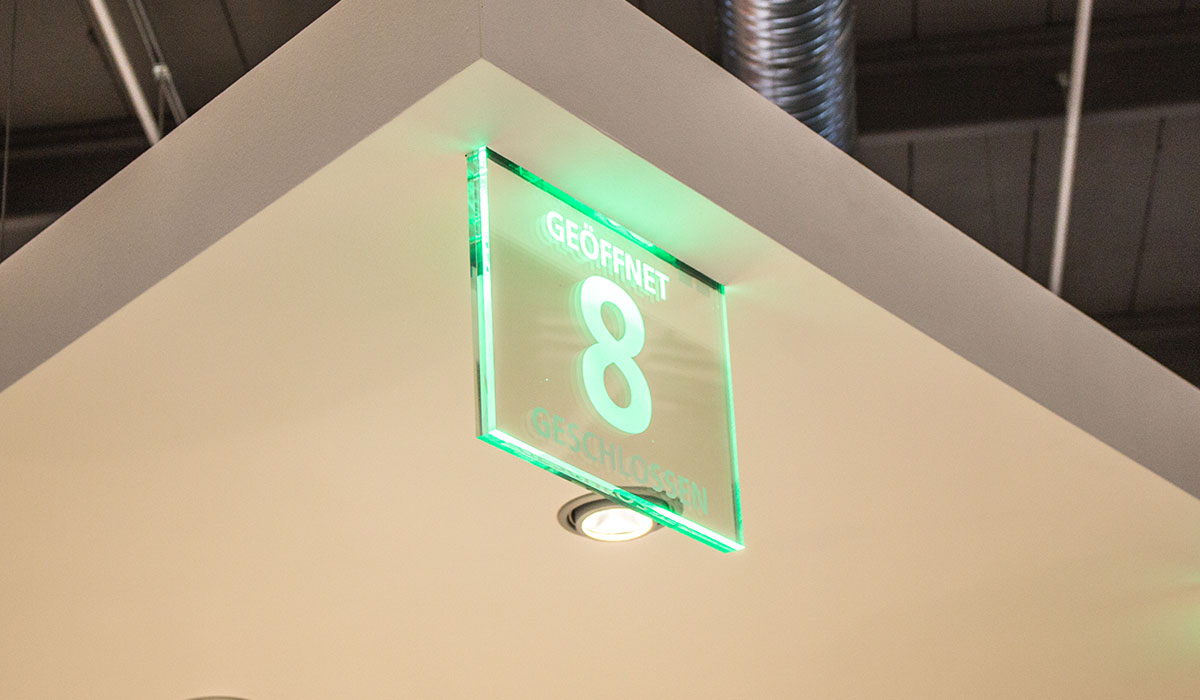

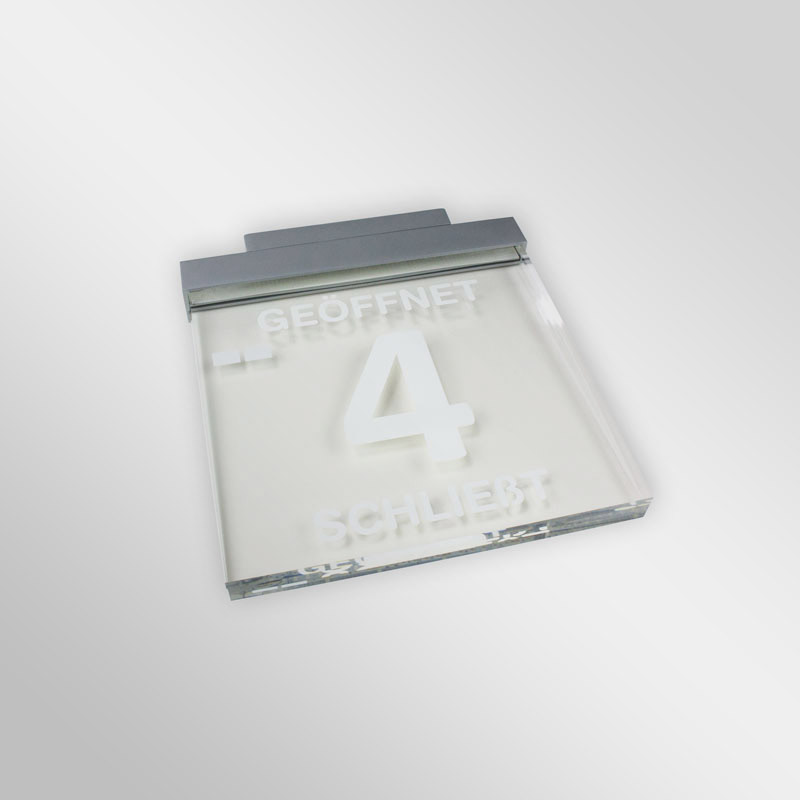

The till light (example)
The integrated till lights for visual signalling regulate the flow to the tills and can be individually adapted to the interior design.
Stacks Image 10217

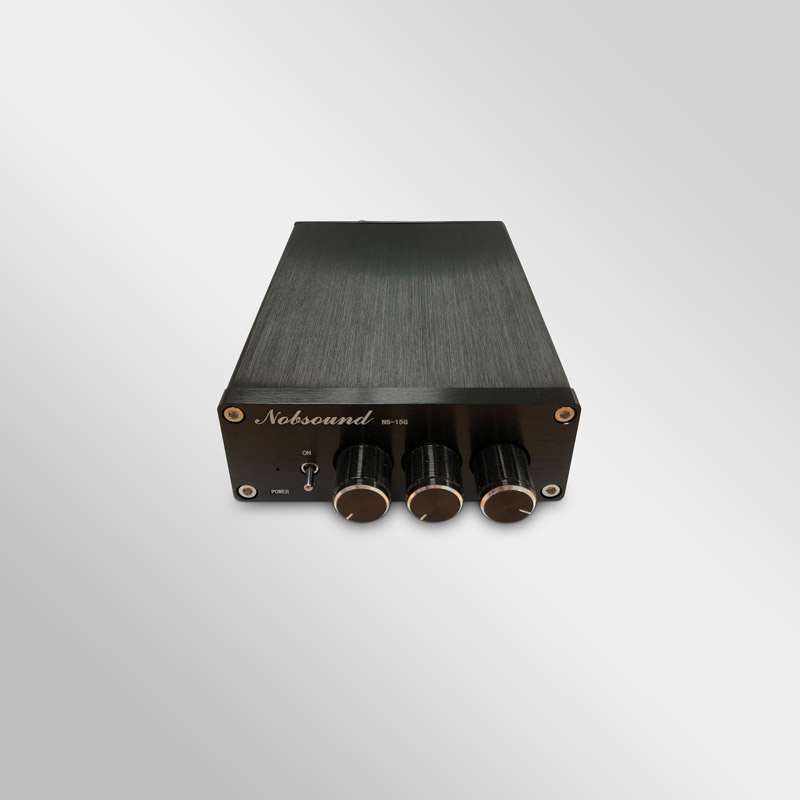

The audio amplifier
Audio system with 100-volt technology (picture) for call functions in the store and employee area. In addition, this system is designed to be connected to an existing instore radio system.
Stacks Image 10233

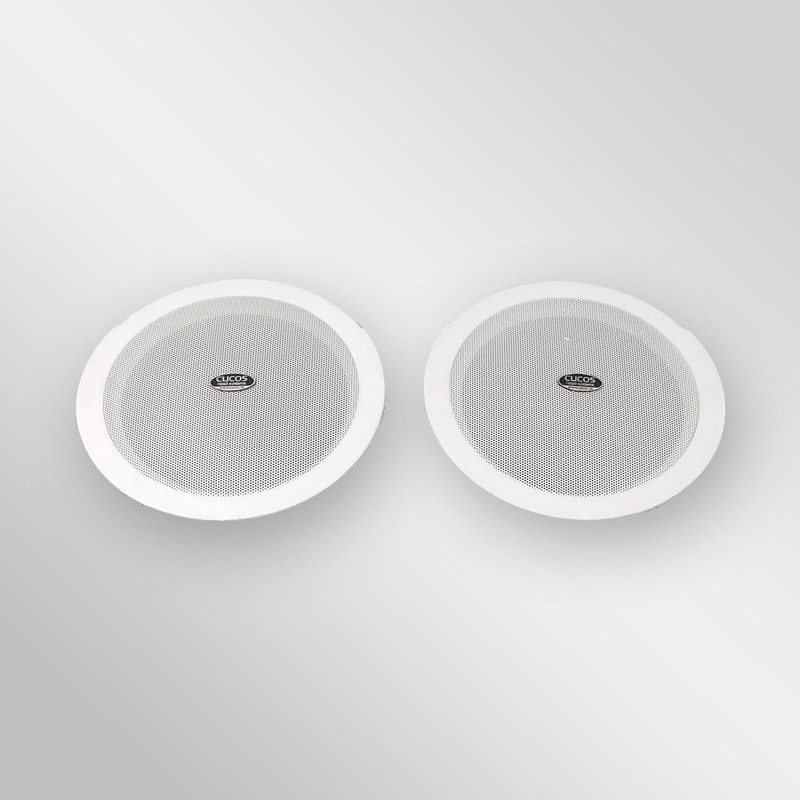

Integrated loudspeaker
Designed for use with 100 volt technology or a conventional ohm circuit. For integration in false ceilings (e.g. Odenwald ceiling).
Stacks Image 10249

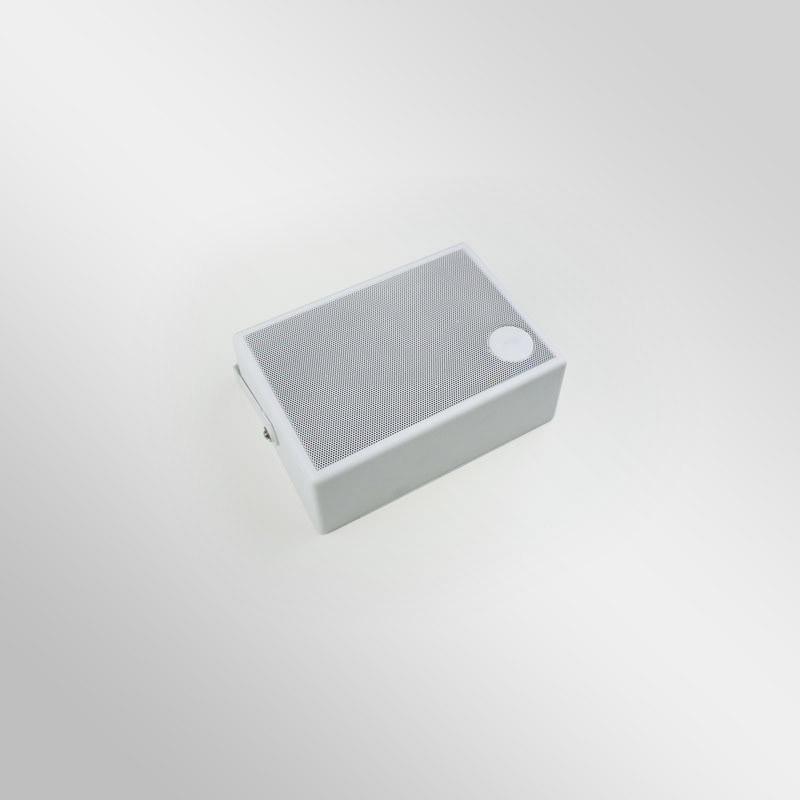

Loudspeaker(s)
Wall loudspeaker with mounting bracket and volume regulator for individual regulation of the volume e.g. in meeting rooms and offices.
Stacks Image 10265
Audio Prio Box
For connection and reproduction of the staff or customer announcements generated by the customer guidance system to an existing in-store radio system. This ensures the priority of the announcements issued throughout the store area.
Stacks Image 10281
Infrared sensor (motionQ)
For detection of the queues forming in the till area. This sensor is used with vertical measurement. If this version is installed, a ceiling height of at least 2.4 m must be present.
Stacks Image 10297
Ultrasound sensor (motionQ)
For detection of the queues forming in the till area or directly at the cash desk. This sensor covers a horizontal detection range of 0.2 to 4 m and is popular for express systems with an integrated monitor display.
Stacks Image 10313
Backdoor Bell
Through the connection to the bell for delivery people, this adapter generates a signal or an announcement for the staff e.g.: “Staff to delivery area please” or a previously defined signal.
Stacks Image 10329
Till expansion
With the ‘slave’ system, an existing customer guidance system can be expanded to include a further 4 tills.
Stacks Image 10345

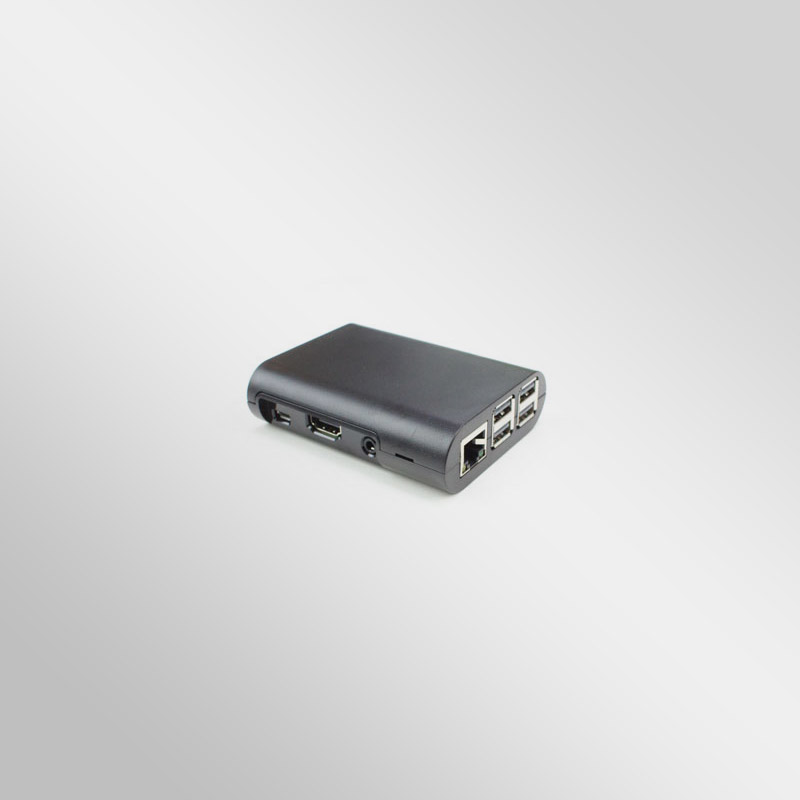

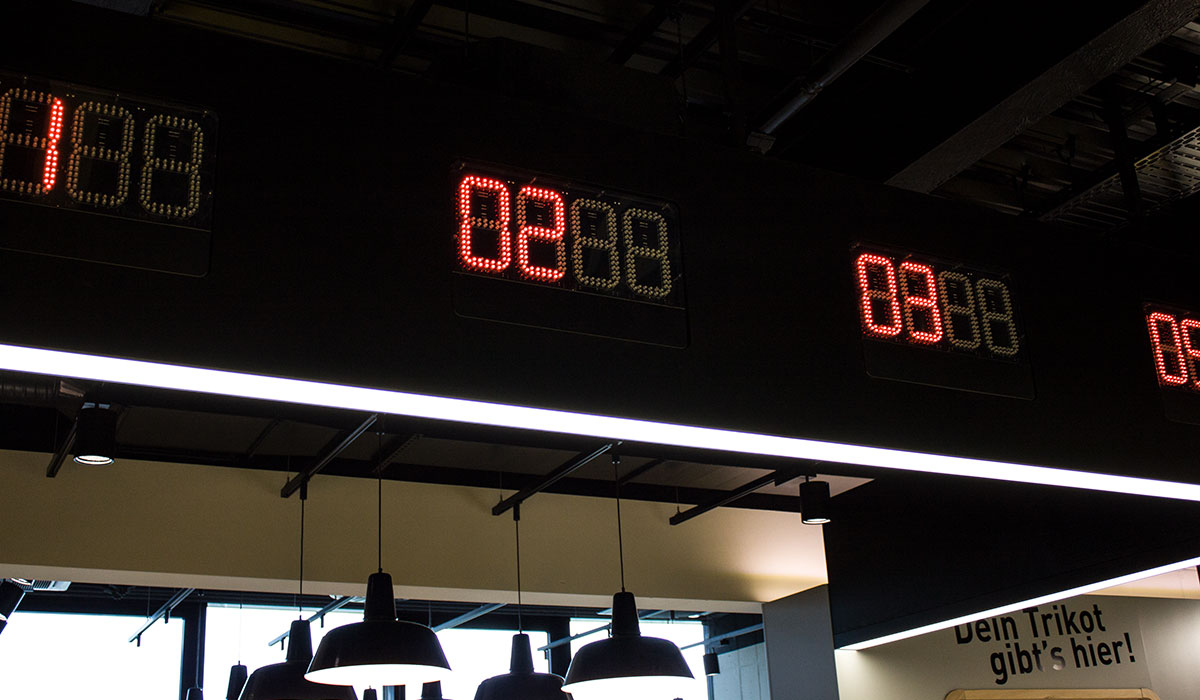

Digital signage expansion
Diverse application area e.g: digital signage and display of an existing till queue or direction indicator.

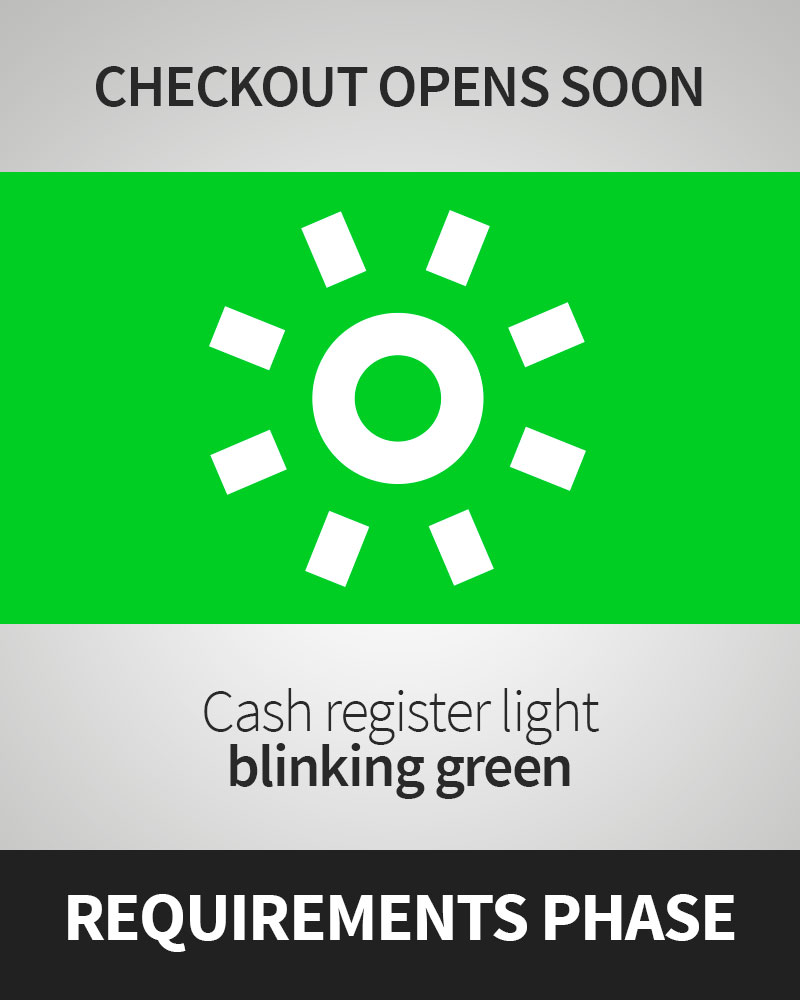

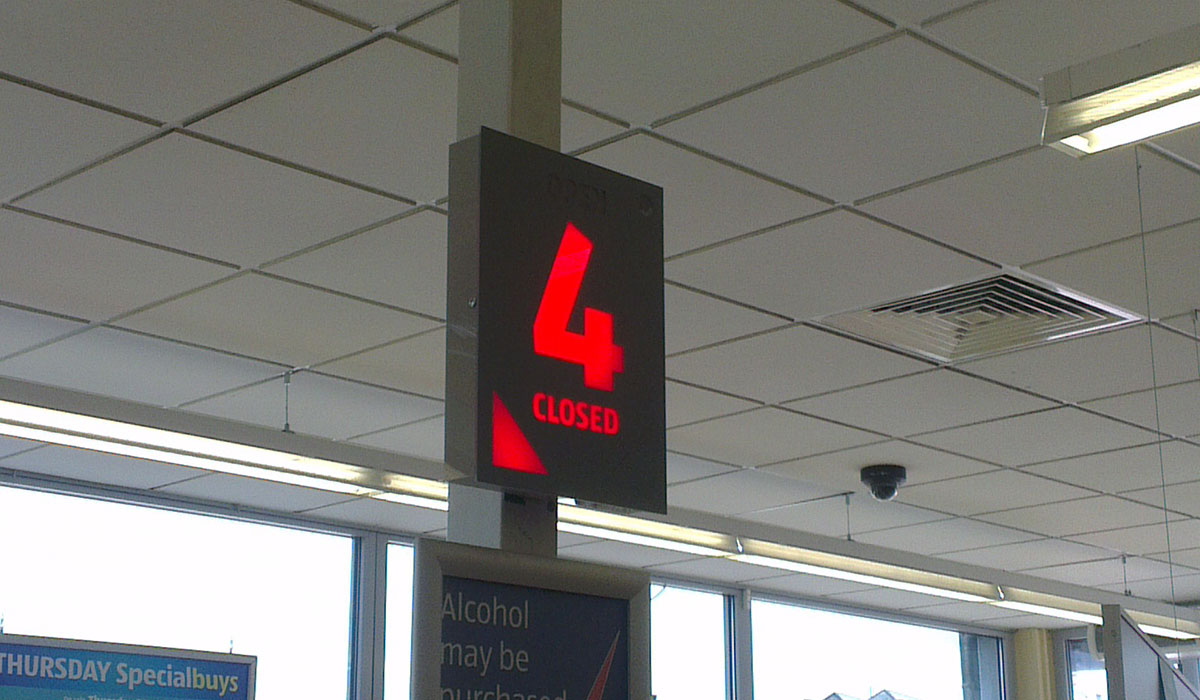

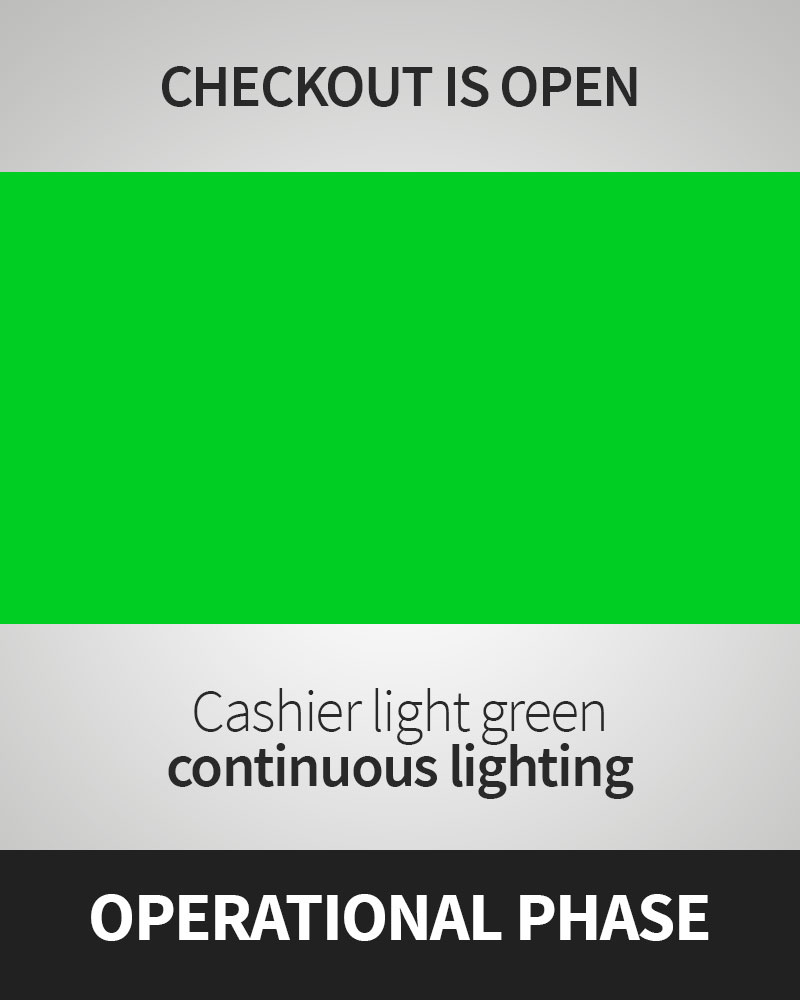

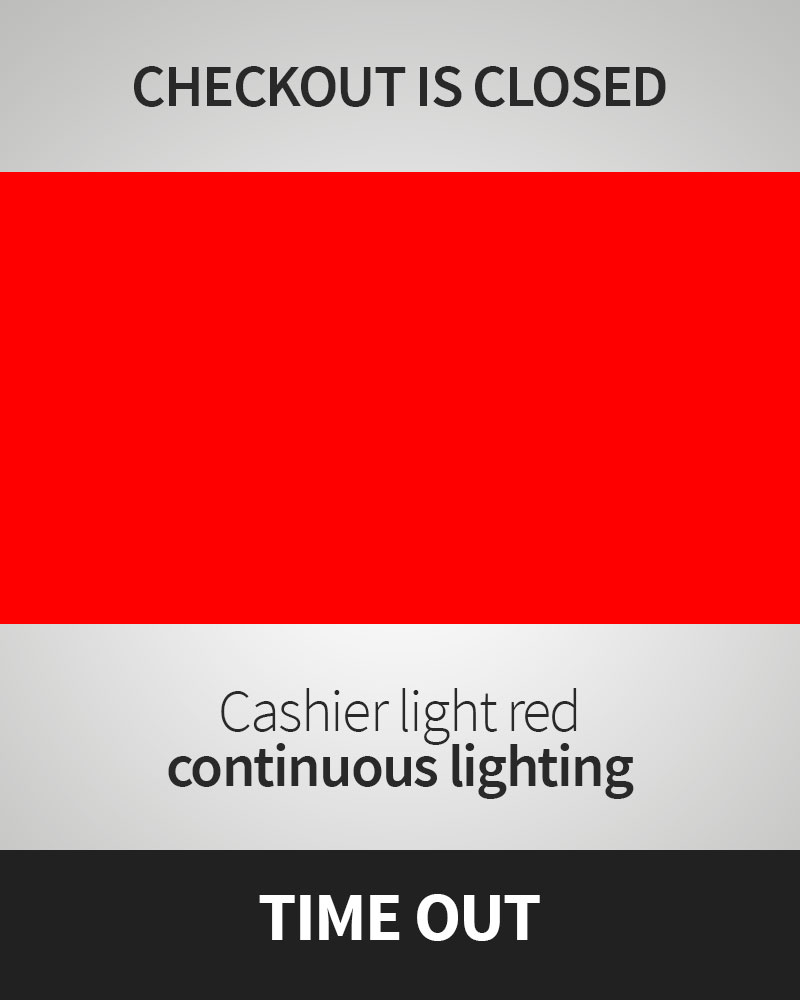

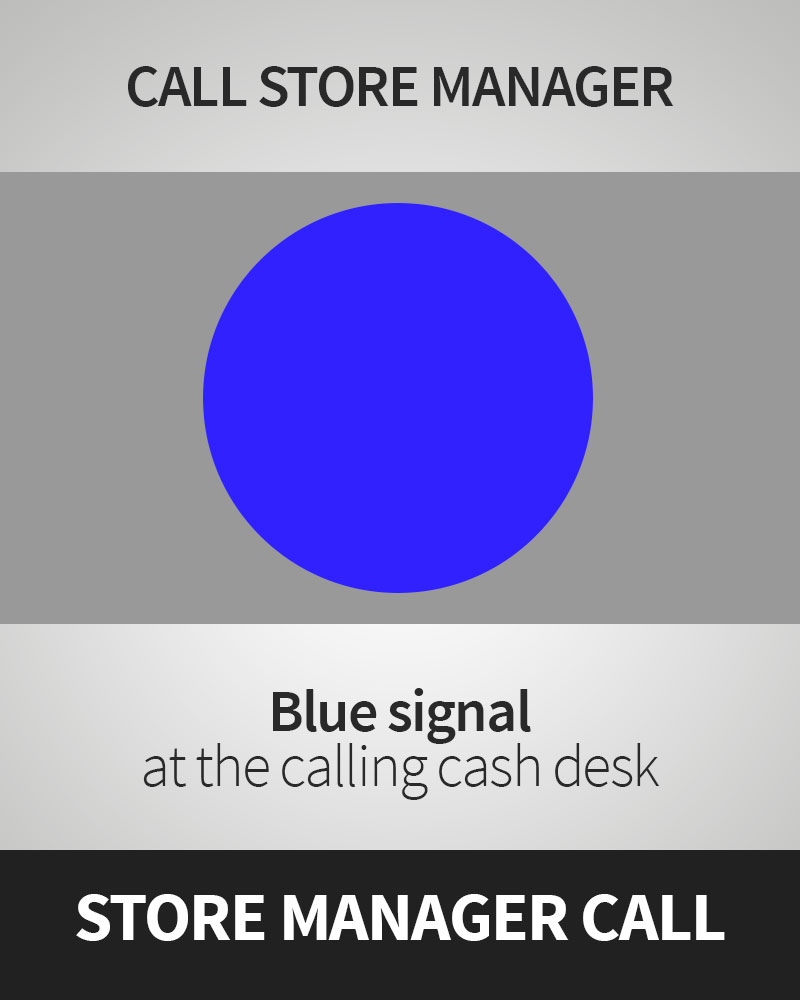

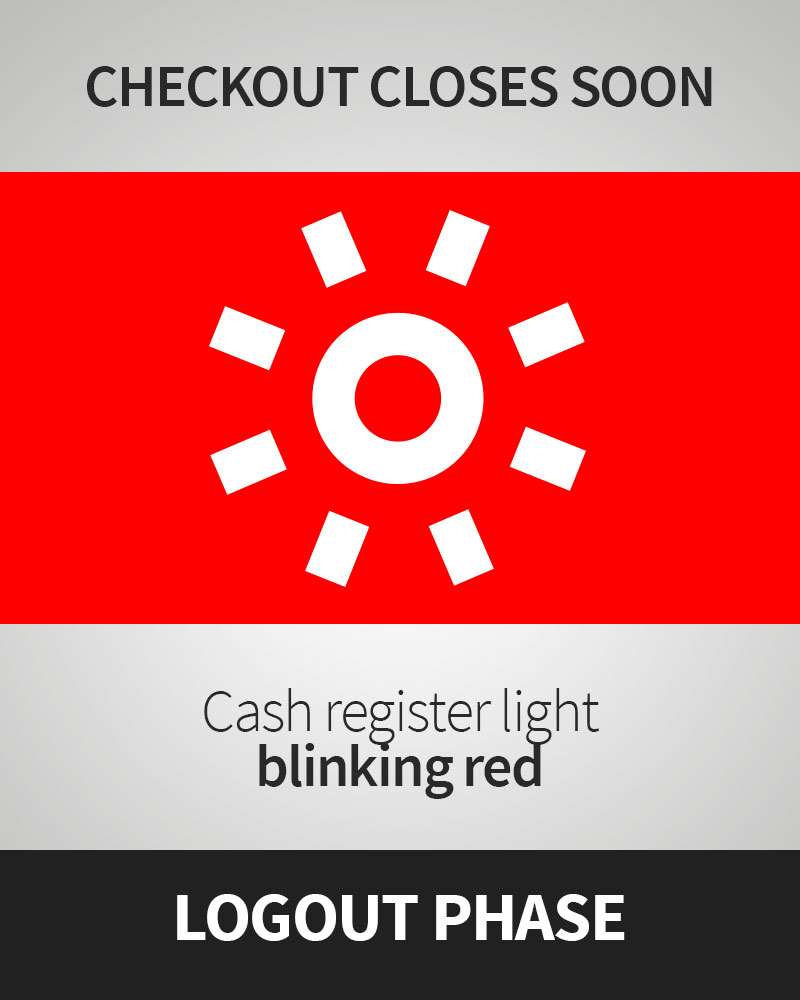

Display functions of the till lights
Stacks Image 9232
Stacks Image 9230
Stacks Image 9234
Stacks Image 9236
Stacks Image 9251
Functions
Stacks Image 9019
Signalling for the customer
Voice announcements
Visual signals (e.g. till traffic light)
Digital signals (e.g. display)
Stacks Image 9021
Signalling for the employee
Employee call function
Store manager call function
Assistance call function
(Main) doorbell connection
Stacks Image 9023
Control of additional components
Cigarette storage system
Bottle/can deposit machine
Automatic baking machine
Existing bell systems
Silent alarm
Telephone system (store management/information)
Digital signage
Recommendation analysis (sensor)
Electronic checkout barrier
Warehouse door bell
Stacks Image 9025
Operation by the employee
Control panel for 5 tills
Control panel for 8 tills
Control panel for 12 tills
Approval of till status (log on /log off)
Registration – calling of one till from every till
Infrared or ultrasound sensors for detection of queuing times
Stacks Image 9106
Stacks Image 9287
Stacks Image 9104
Stacks Image 9600

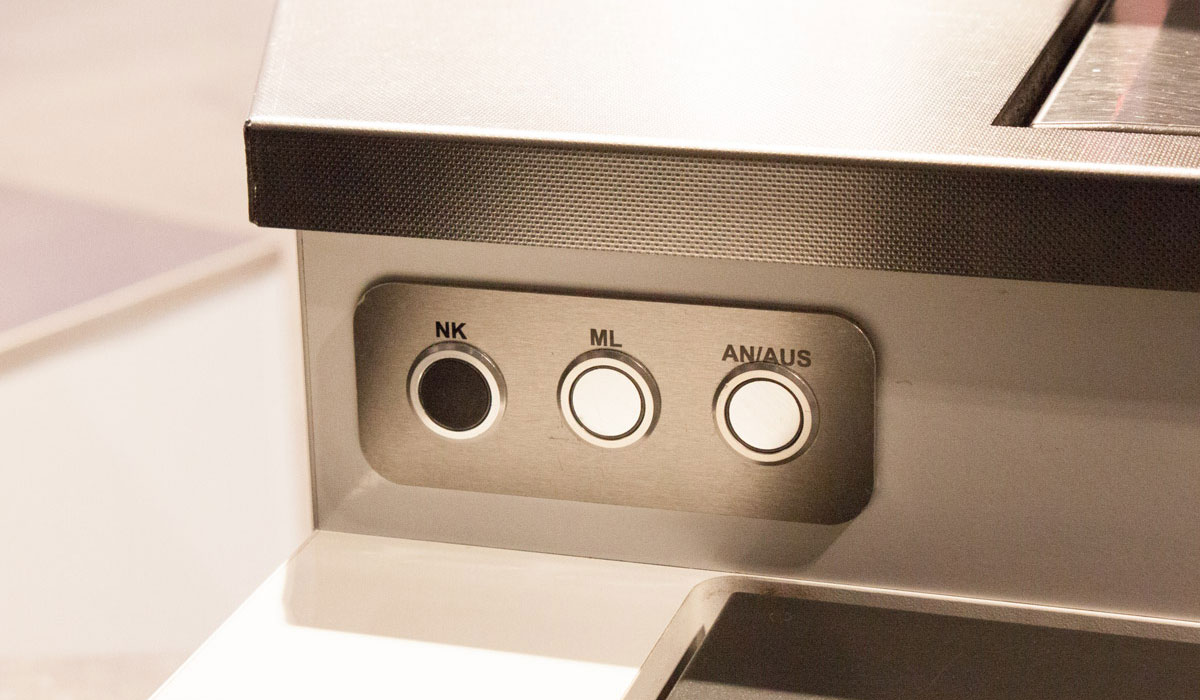

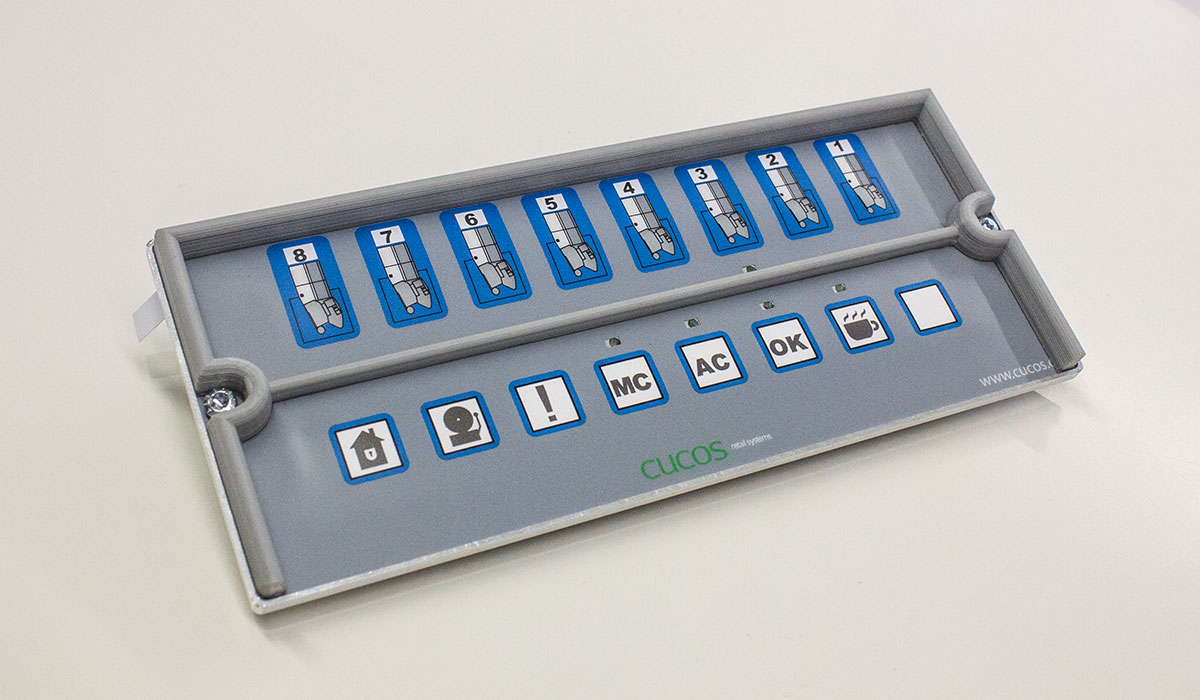

Control panels
Our control panels are adapted
in line with the customer’s wishes.
The shape, colour and layout of the
key panels are agreed on with the
customer.
Stacks Image 9544
Stacks Image 9289
Stacks Image 9134
Stacks Image 10109
Stacks Image 9136

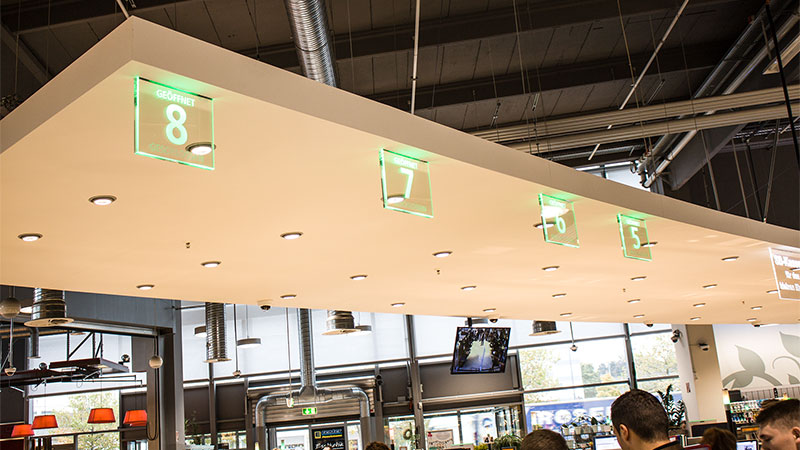

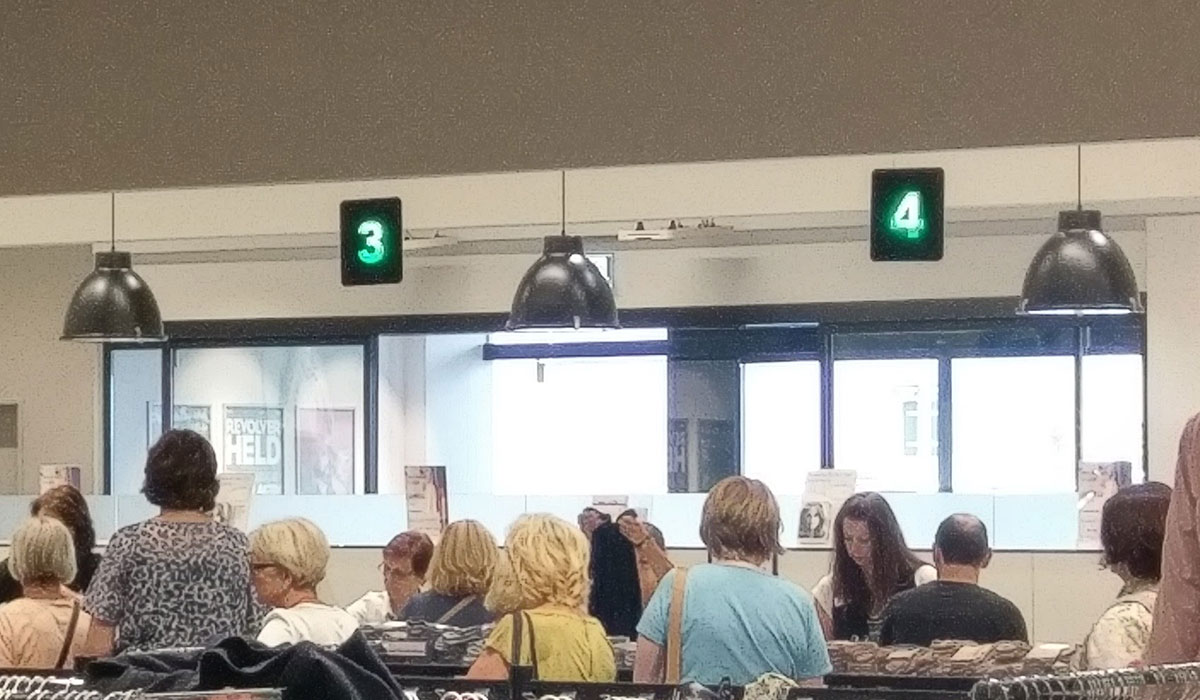

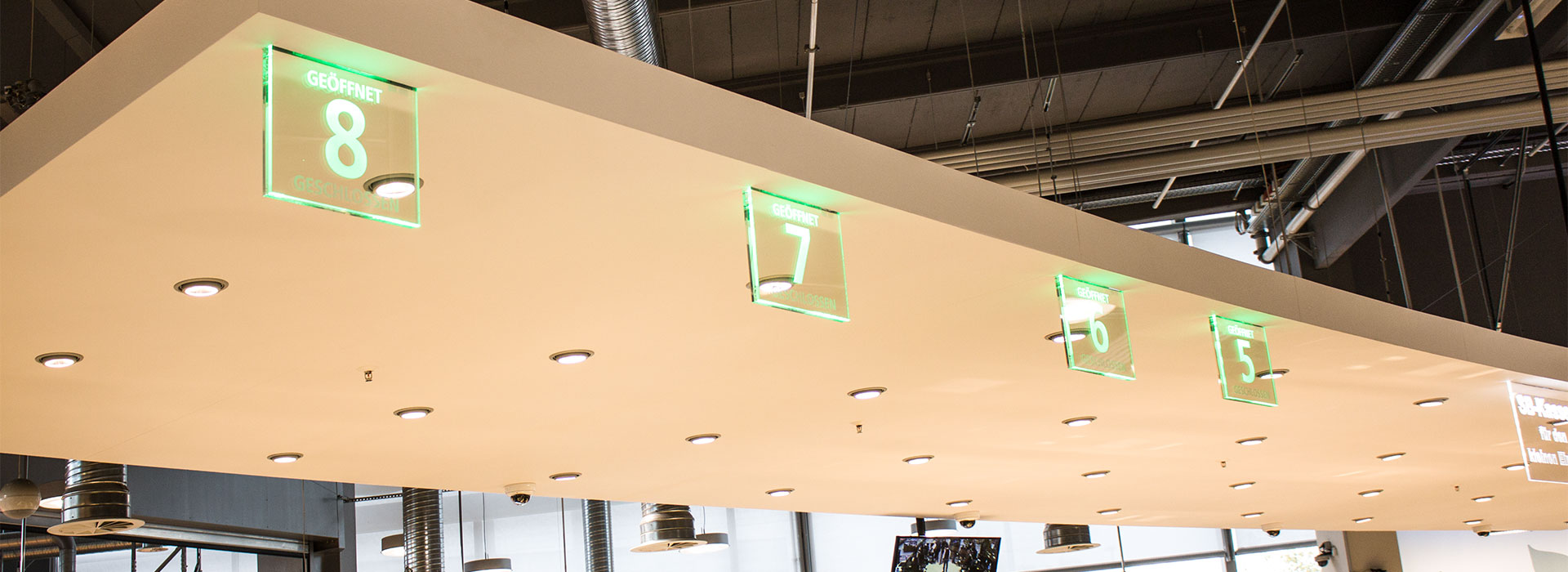

Till lights
There are almost no limits when
it comes to the till lights. The lights –
to match the rest of the shop fittings –
are developed jointly with the customer.
REWE Motyl, ESSEN
